Description

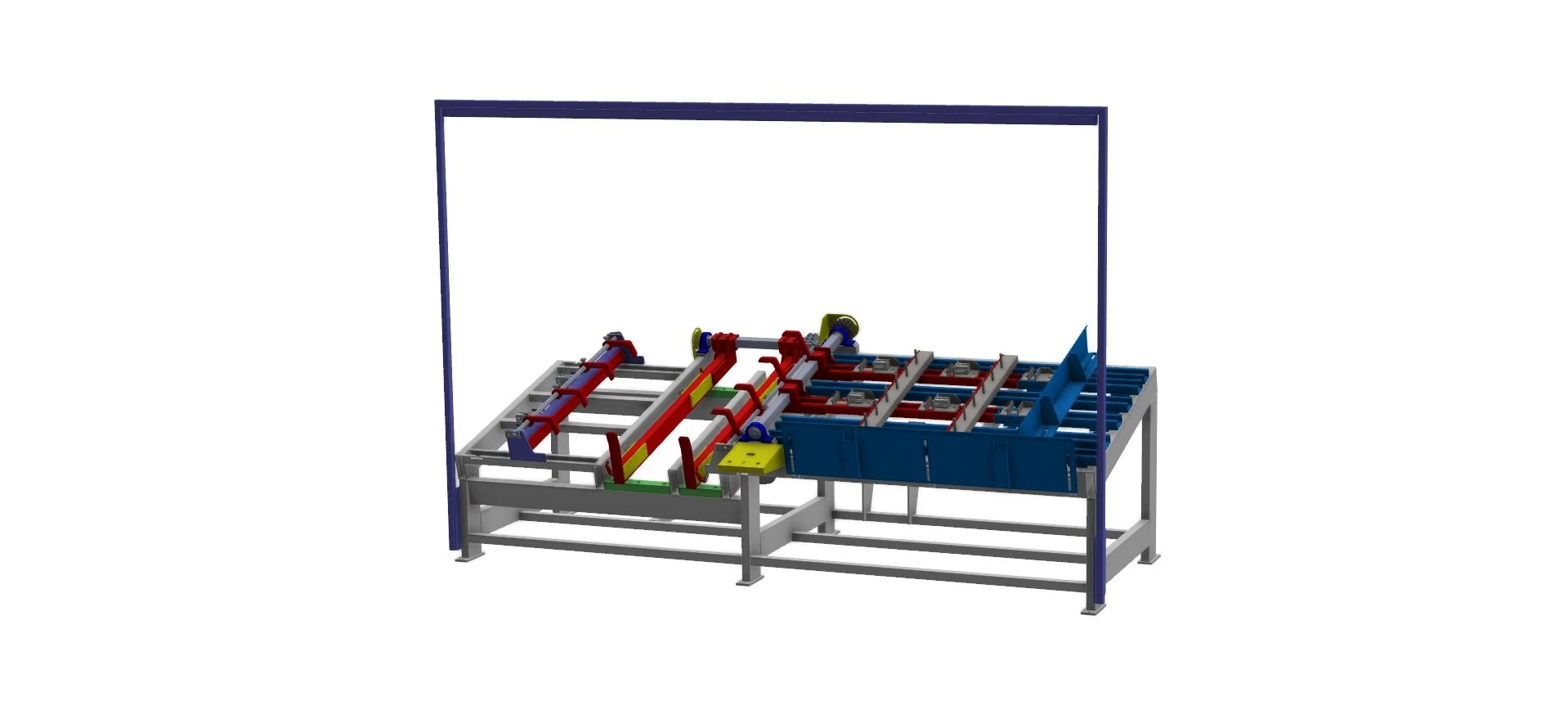

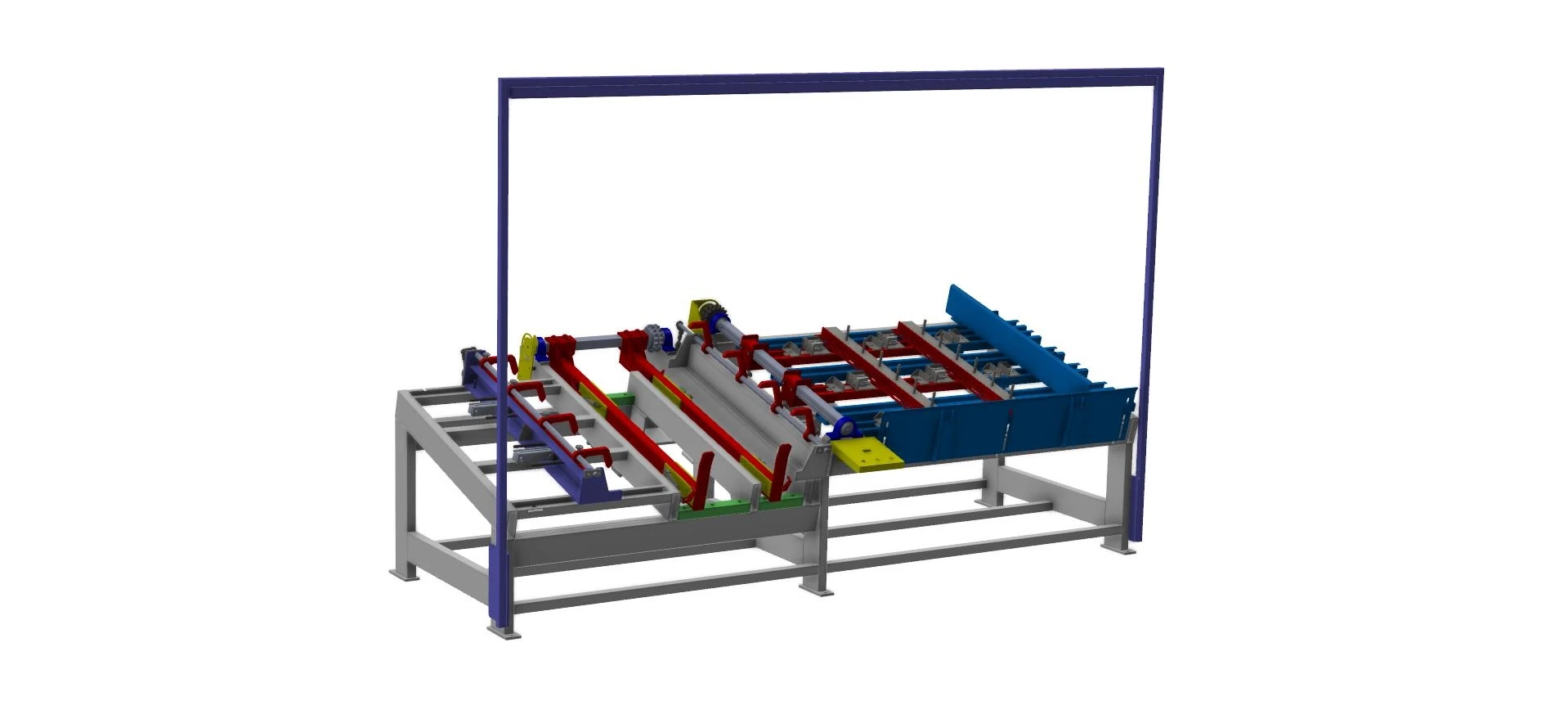

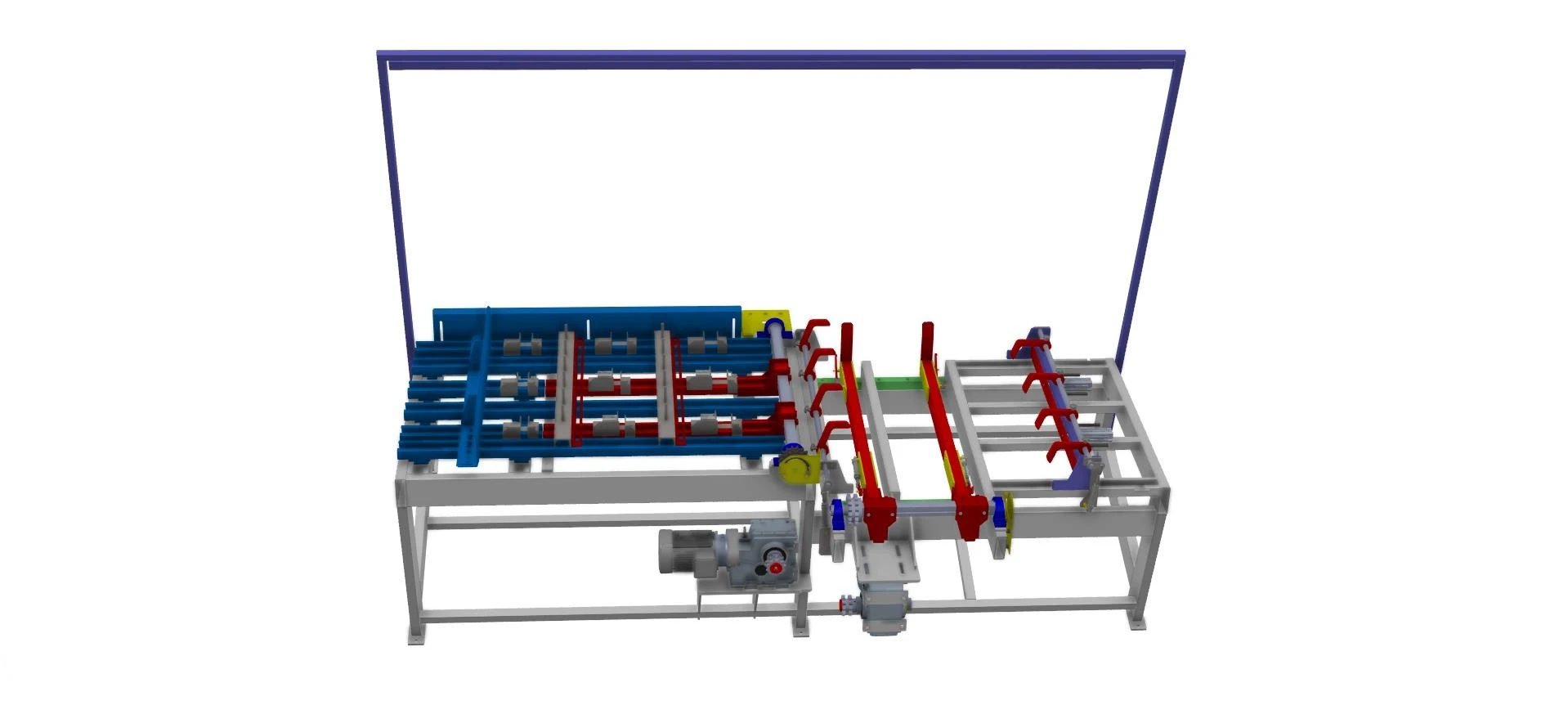

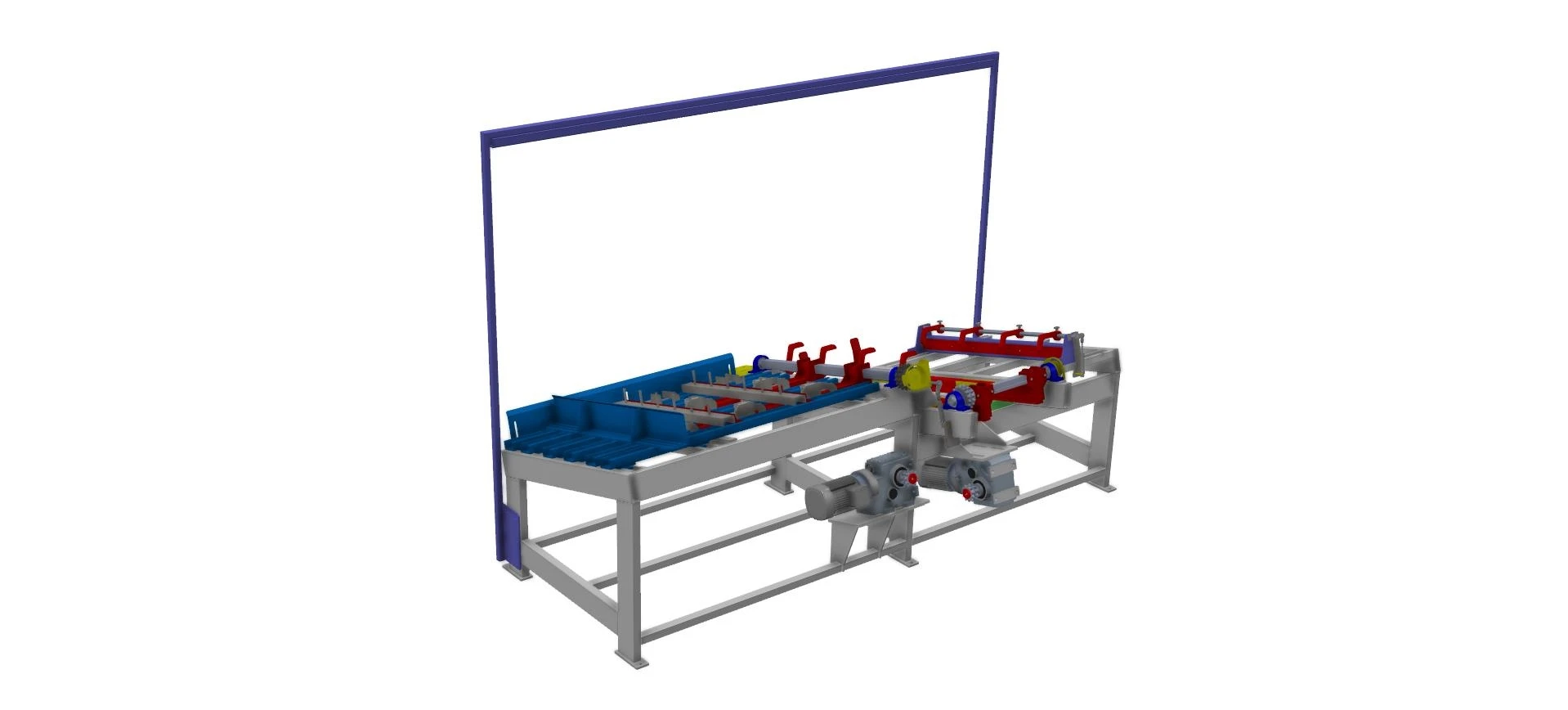

The double pallet nailing table is an industrial solution designed to maximise efficiency in the assembly of wooden pallets, allowing sequential nailing of both sides of the pallet within a single structure: the top side on one end of the table and the bottom side on the other. This configuration enables a continuous, fast, and highly productive operation, significantly reducing cycle times and increasing installed capacity.
Double nailing table concept
By combining the nailing of the top deck and bottom deck within the same structure, the table eliminates unnecessary handling and repositioning between operations. The pallet is assembled in a controlled and organised manner, ensuring excellent dimensional repeatability and meeting the high-quality standards required in the wooden packaging industry.
Robust structure for demanding industrial environments
Built with a welded steel frame of high robustness, the table is engineered to operate in intensive industrial environments. Its construction ensures stability during nailing, minimises unwanted vibration, and guarantees a long service life even under continuous-duty operation. All components are selected to withstand repetitive production cycles and constant mechanical load.
Automatic pallet ejection system
As standard, the table includes an automatic pallet ejection system that removes the finished pallet without the need for manual effort, forwarding it to the next module or to an accumulation zone. This feature reduces operator workload, improves ergonomics, and contributes to a safer and smoother production flow.
Optional integration with stacker and corner cutter
When required, the double pallet nailing table can be supplied with an integrated pallet stacker, allowing automatic accumulation of finished units. This integration simplifies handling and prepares pallets for storage or dispatch. The stacker may also include an integrated corner-cutting system, ensuring a clean and standardised finish, particularly important for applications with stricter aesthetic or regulatory requirements.
Compatibility with different pallet formats
The table is compatible with the main pallet formats used in the logistics and industrial sectors and can be configured for:
- EPAL pallets: EPAL 1, EPAL 2, EPAL 3, Half-Pallet EPAL 6, Half-Pallet EPAL 7.
- Chemical pallets: EPAL CP1, EPAL CP2, EPAL CP3, EPAL CP4, EPAL CP5, EPAL CP6, EPAL CP7, EPAL CP8, EPAL CP9.
- American pallets: 1200 × 1000 mm and similar formats.
- Custom-made pallets: designed and dimensioned according to each client’s specific requirements.
Customisation may include variations in dimensions, block positions, deck board layout, and other structural elements, allowing a single table to handle multiple pallet configurations within the same production environment.
Integration in pallet production lines
The double pallet nailing table can operate as a standalone machine or be integrated into semi-automatic or fully automatic pallet production lines. Its mechanical and electrical interface is designed for communication with conveyors, rotation modules, marking units, stackers, and additional auxiliary equipment, ensuring a coordinated flow and increased assembly efficiency.
Bartly solution developed by Irmach
Manufactured by Irmach and marketed under the Bartly brand, the double pallet nailing table is a reliable, versatile, and highly efficient solution for companies that value productivity, assembly quality, and adaptability to multiple pallet formats. Its combination of robust construction, operational simplicity, and customisation options makes it a key element in modern pallet production lines.
Frequently asked questions about double pallet nailing tables
Can the table be adapted to different pallet types and formats?
Yes. The nailing table is designed according to the pallet formats the client needs to produce, including EPAL, chemical pallets, American pallets or fully customised models. All configurations are defined together with Irmach’s technical team to ensure full compatibility with the production process.
Can an automatic pallet stacker be integrated with the nailing table?
Yes. The table can be supplied with an automatic pallet stacker, allowing accumulation of finished pallets and improving the end-of-line workflow. Optionally, this stacker may include an integrated corner-cutter for finishing and pallet edge standardisation.
Is the double pallet nailing table suitable for intensive production?
Yes. The welded steel frame, industrial-grade components and automatic ejection system are designed for intensive operation, ensuring stability, repeatability and low downtime in high-output production lines.
